GridGain Clients

GridGain 9 clients connect to the cluster via a standard socket connection. Unlike in GridGain 8.x, there is no separate Thin and Thick clients in GridGain 9. All clients are 'thin'.

Clients do not become a part of the cluster topology, never hold any data, and are not used as a destination for compute calculations.

Client Connector Configuration

Client connection parameters are controlled by the client connector configuration. By default, GridGain accepts client connections on port 10800. You can change the configuration for the node by using the CLI tool at any time.

In GridGain 9, you can create and maintain configuration in either HOCON or JSON. The configuration file has a single root "node," called ignite. All configuration sections are children, grandchildren, etc., of that node. Here is what the client connector configuration looks like:

{
  "ignite" : {
    "clientConnector" : {
      "connectTimeoutMillis" : 5000,
      "idleTimeoutMillis" : 0,
      "listenAddresses" : [],
      "metricsEnabled" : false,
      "name": "client",
      "port" : 10800,
      "sendServerExceptionStackTraceToClient" : false,
      "ssl" : {
        "ciphers" : "",
        "clientAuth" : "none",
        "enabled" : false,
          "keyStore" : {
          "password" : "********",
          "path" : "",
          "type" : "PKCS12"
        },
        "trustStore" : {
          "password" : "********",
          "path" : "",
          "type" : "PKCS12"
        }
      }
    }
  }
}

Property Default Description Changeable Requires Restart Acceptable Values

Property	Default	Description	Changeable	Requires Restart	Acceptable Values
connectTimeoutMillis	5000	Connection attempt timeout, in milliseconds.	Yes	Yes	0 - inf
idleTimeoutMillis	0	How long the client can be idle before the connection is dropped, in milliseconds. By default, there is no limit (0).	Yes	Yes	0-2147483647
listenAddresses		List of addresses (IPs or hostnames) to listen on. Listens on all interfaces if empty.	Yes	Yes	A list of valid addresses separated by comma
metricsEnabled	false	Defines if client metrics are collected.	Yes	Yes	true, false
name	`client_{number}`	Defines the unique client name. If not specified, generated automatically based on client number.	Yes	Yes	A valid string
port	10800	The port the client connector will be listening to.	Yes	Yes	1024-65535
sendServerExceptionStackTraceToClient	false	By default, only the exception message and code are sent back to the client. Set this property to true to include the full stack trace, which will appear as part of the client-side exception. Not recommended for production: stack trace disclosure is a security weakness.	Yes	Yes	true, false
ssl.ciphers	""	List of ciphers to enable, comma-separated. Empty for automatic cipher selection.	Yes	Yes	TLS_AES_256_GCM_SHA384, etc. (standard cipher ids)
ssl.clientAuth	none	Whether the SSL client authentication is enabled and whether it is mandatory.	Yes	Yes	none, optional, require
ssl.enabled	false	Defines if SSL is enabled.	Yes	Yes	true, false
ssl.keyStore.password	**	SSL keystore password.	Yes	Yes	A valid password
ssl.keyStore.path		Path to the SSL keystore.	Yes	Yes	A valid path
ssl.keyStore.type	PKCS12	Keystore type.	Yes	Yes	PKCS12, JKS
ssl.trustStore.password	**	Truststore password.	Yes	Yes	A valid password
ssl.trustStore.path		Path to the truststore.	Yes	Yes	A valid path
ssl.trustStore.type	PKCS12	Truststore type.	Yes	Yes	PKCS12, JKS

connectTimeoutMillis

5000

Connection attempt timeout, in milliseconds.

Yes

0 - inf

idleTimeoutMillis

How long the client can be idle before the connection is dropped, in milliseconds. By default, there is no limit (0).

Yes

0-2147483647

listenAddresses

List of addresses (IPs or hostnames) to listen on. Listens on all interfaces if empty.

Yes

A list of valid addresses separated by comma

metricsEnabled

false

Defines if client metrics are collected.

Yes

true, false

name

client_{number}

Defines the unique client name. If not specified, generated automatically based on client number.

Yes

A valid string

port

10800

The port the client connector will be listening to.

Yes

1024-65535

sendServerExceptionStackTraceToClient

false

By default, only the exception message and code are sent back to the client.

Set this property to true to include the full stack trace, which will appear as part of the client-side exception.

Yes

true, false

ssl.ciphers

List of ciphers to enable, comma-separated. Empty for automatic cipher selection.

Yes

TLS_AES_256_GCM_SHA384, etc. (standard cipher ids)

ssl.clientAuth

none

Whether the SSL client authentication is enabled and whether it is mandatory.

Yes

none, optional, require

ssl.enabled

false

Defines if SSL is enabled.

Yes

true, false

ssl.keyStore.password

SSL keystore password.

Yes

A valid password

ssl.keyStore.path

Path to the SSL keystore.

Yes

A valid path

ssl.keyStore.type

PKCS12

Keystore type.

Yes

PKCS12, JKS

ssl.trustStore.password

Truststore password.

Yes

A valid password

ssl.trustStore.path

Path to the truststore.

Yes

A valid path

ssl.trustStore.type

PKCS12

Truststore type.

Yes

PKCS12, JKS

Here is how you can change the parameters:

node config update clientConnector.port=10469

Limitations

There are limitations to user types that can be used for such a mapping. Some limitations are common, and others are platform-specific due to the programming language used.

Only flat field structure is supported, meaning no nesting user objects. This is because GridGain tables, and therefore tuples have flat structure themselves;
Fields should be mapped to GridGain types;
All fields in user type should either be mapped to Table column or explicitly excluded;
All columns from Table should be mapped to some field in the user type;
Java only: Users should implement Mapper classes for user types for more flexibility;

Client Connection

When GridGain client is starting (when the build() or buildAsync() method is called), it tries to connect to all configured endpoints one by one in the specified order, and returns as soon as one connection is established. If the client fails to connect to any nodes, the initialization fails.

Once the client connects to the cluster, it keeps attempting to connect to all other specified nodes in the background, and uses them as failover in case the connection to the primary node is interrupted. Client does not directly connect to nodes not specified in its configuration, but is aware of them through cluster topology and can send indirect write or read requests.

An inactive client sends periodic heartbeat messages to the cluster to confirm that it is still active and running. If no heartbeat messages are received for the duration specified in the idleTimeoutMillis configuration, the client will be disconnected. By default, the heartbeat interval is equal to half the idle timeout or 30 seconds, whichever is shorter.

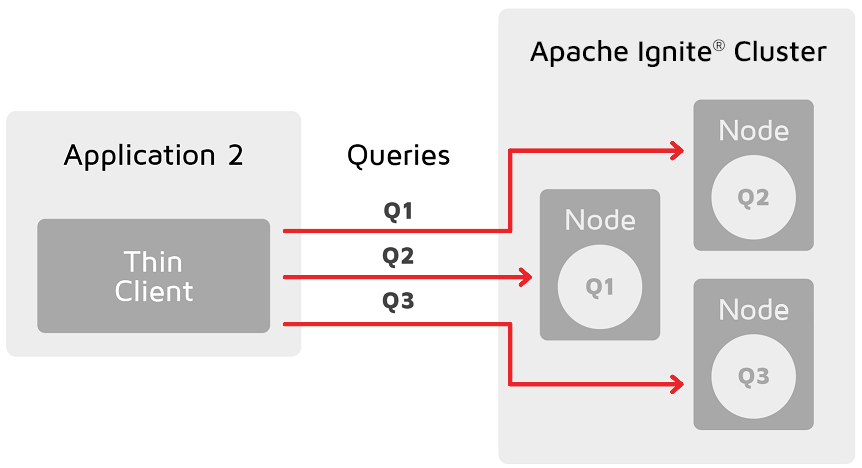

Partition Awareness

As data in the cluster is distributed between the nodes, the client can improve throughput by immediately sending updates and read requests to target nodes holding the data.

For each key that needs updating, the client will get the name of the node holding its primary partition and then send an update directly to this node. If there is an active connection to this node, the update will be sent directly to it. Otherwise, the update will be sent to a random node on the list to be redirected to the target node. As such, it is recommended to list all cluster nodes in client configuration to reduce unnecessary network load.

Limitations

GridGain can only apply partition awareness optimization for queries over single partition of a single table.
DML queries, which cannot be rewritten to key-value operations, are not supported yet.
GridGain can execute a query as key-value operation only if the query contains an equality condition on all key columns. Partition awareness will only work for DML queries if the query can be rewritten to a single key-value operation. The explain plan will contains KeyValueGet or KeyValueModify node in that case. Bulk DML operations (like INSERT FROM SELECT or multi-values INSERT FROM VALUES) are not supported yet.
Equality condition on colocation key columns is required.
Apache Ignite can only apply partition awareness optimization if the SQL query contains an equality condition on all colocated columns. This requirement allows the client to route the query to the node where the partition with the data resides.
Partition awareness cache on client may miss required metadata
Client nodes do not parse or execute queries by themselves, they require query metadata with colocation information from the server node to utilize partition awareness optimization. The query metadata is cached on client after the first query execution and can be used in later query runs. However, it also can be evicted due to cache eviction policies.
See org.apache.ignite.client.IgniteClient.Builder#sqlPartitionAwarenessMetadataCacheSize() for more information.

How to Check if Partition Awareness is Applicable

You can verify whether partition awareness is used for a given SQL query by inspecting the EXPLAIN command results.

The resulting plan should contain a TableScan node with equality conditions on all colocation columns of the table:
```
TableScan
      table: PUBLIC.T
      predicate: AND(=(COLOCATION_COL_1, ?), =(COLOCATION_COL_2, ?))
```

or a similar IndexScan where the search bound has a prefix of all the colocation columns:

IndexScan
      table: PUBLIC.T
      predicate: AND(=(COLOCATION_COL_1, ?), =(COLOCATION_COL_2, ?))
      searchBounds: [ExactBounds [bound=?], ExactBounds [bound=?]]

or KeyValueGet node:

KeyValueGet
    table: PUBLIC.T
    key: [?0]

or KeyValueModify node:

KeyValueModify
    table: PUBLIC.T
    key: [?0]

Examples

Assuming a table T is defined as:

CREATE TABLE T (
    id INT NOT NULL,
    region_id INT NOT NULL,
    customer_id INT NOT NULL,
    val VARCHAR,
    PRIMARY KEY (id, region_id, customer_id)
) COLOCATE BY (region_id, customer_id);

The following queries can utilize partition awareness optimization:

SELECT * FROM T WHERE region_id =? AND customer_id = ?

DELETE FROM T
WHERE id = ? AND region_id = ? AND customer_id = ?;

INSERT INTO T (id, region_id, customer_id, val)
VALUES (?, ?, ?, ?);

While these queries will not utilize partition awareness:

// Missing condition for colocation column `customer_id`.
SELECT * FROM T WHERE region_id =?

// Non-equality condition on colocation column.
SELECT * FROM T WHERE region_id = ? AND customer_id > ?

In more complex cases (nested queries, IN condition, JOINS), partition awareness is not guaranteed to work. It depends on whether the query can be rewritten in a form which contains sufficient information to locate the data.

Client Features

The following table outlines features supported by each client.

Feature	Java	.NET	C++
Record Tuple View	yes	yes	yes
Key-Value Tuple View	yes	yes	yes
Record View	yes	yes	yes
Key-Value View	yes	yes	yes
SQL API	yes	yes	yes
Partition Awareness	yes	yes	No
Transactions	yes	yes	yes
Compute API	yes	yes	yes
Retry Policy	yes	yes	No
Heartbeats	yes	yes	yes
Data Streamer	yes	yes	No
Continuous Query	yes	No	yes

Feature

Java

.NET

C++

Record Tuple View

yes

Key-Value Tuple View

yes

Record View

yes

Key-Value View

yes

SQL API

yes

Partition Awareness

yes

Transactions

yes

Compute API

yes

Retry Policy

yes

Heartbeats

yes

Data Streamer

yes

Continuous Query

yes
