Configuring Metrics

Metric management is performed through the GridGain CLI tool.

Listing Metric Sources

You can list all available metric sources for a node or for the entire cluster.

node metric source list
cluster metric source list

Listing Metrics

You can list all metrics for a node.

node metric list

The above command returns the list of all currently available metrics organized with their exporters.

Enabling Metric Sources

Metric collection might affect the performance of an application. Therefore, by default, all metric sources are disabled.

Metric sources can be enabled:

On per-node basis - you can specify the node to interact with by using the -u parameter to specify node URL or -n parameter to specify node name.
For the entire cluster.

For example:

node metric source enable -n=defaultNode jvm
cluster metric source enable jvm

Disabling Metric Sources

Metric sources can be disabled:

On per-node basis - you can specify the node to interact with by using the -u parameter to specify node URL or -n parameter to specify node name.
For the entire cluster.

For example:

node metric source disable -n=defaultNode jvm
cluster metric source disable jvm

Configuring Metrics Exporters

To access the collected metrics with external tools, you need to configure metrics exporters.

JMX

The JMX exporter provides information about GridGain nodes in JMX(Java Management Extensions) format. When the exporter is enabled, the node exposes the metrics to monitoring tools.

You can enable the JMX exporter in the following way:

cluster config update ignite.metrics.exporters.myJmxExporter.exporterName=jmx

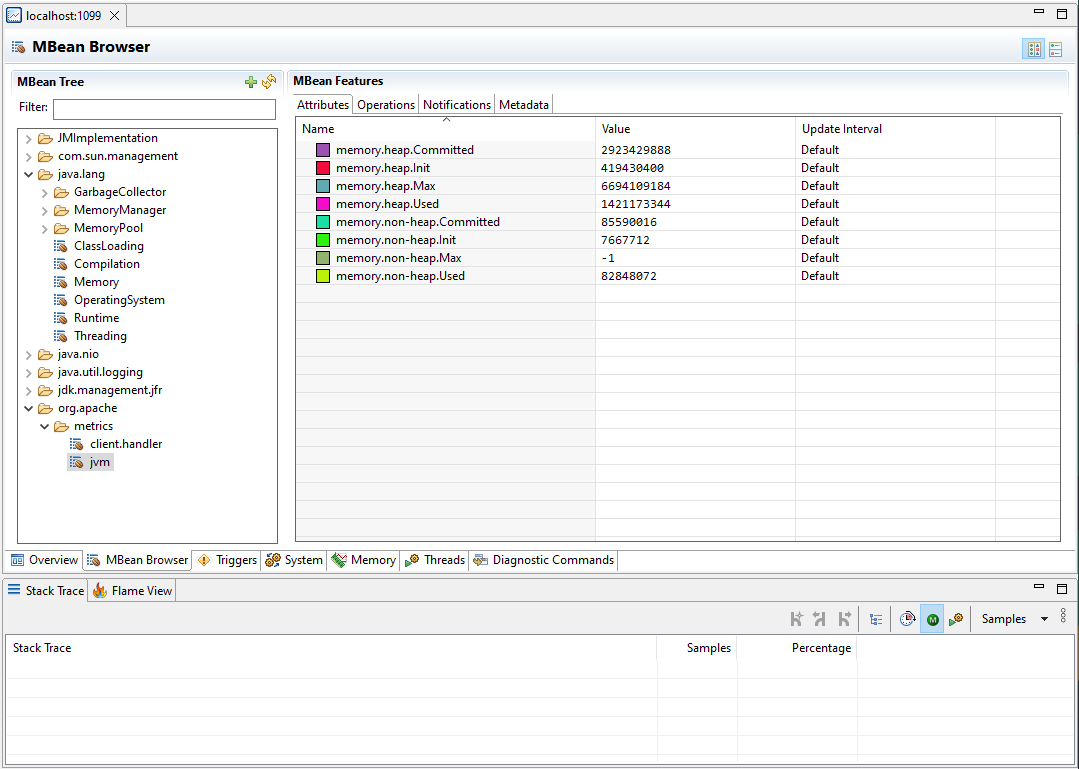

After you do, JMX monitoring tools will be able to collect enabled metrics from the specified nodes:

OpenTelemetry

The OpenTelemetry exporter connects to an OpenTelemetry service that is provided in configuration and sends cluster information to it. Each node sends metrics independently, and requires access to the specified endpoint.

The example below shows the basic OpenTelemetry configuration. As OpenTelemetry services require different URL formats and may require headers, this example may not work for your environment.

cluster config update ignite.metrics.exporters.test: {exporterName:otlp, endpoint:"http://localhost:9090/api/v1/otlp/v1/metrics", protocol:"http/protobuf"}

OpenTelemetry exporter created by this command will look like this:

{
        compression=gzip
        endpoint="http://localhost:9090/api/v1/otlp/v1/metrics"
        exporterName=otlp
        headers=[]
        name=test
        period=30000
        protocol="http/protobuf"
        ssl {
            ciphers=""
            clientAuth=none
            enabled=false
            keyStore {
                password="********"
                path=""
                type=PKCS12
            }
            trustStore {
                password="********"
                path=""
                type=PKCS12
            }
        }
    },

Below are the descriptions of configuration parameters:

Name Description Default value

Name	Description	Default value
compression	How the payload is compressed. Possible values: `none`, `gzip`.	`gzip`
endpoint	The OpenTelemetry endpoint. Each node resolves the endpoint individually.
exporterName	Exporter name. Must be `otlp` to use OpenTelemetry.
headers	Request headers, if any.
name	User-defined exporter name, used to refer to it in GridGain.
period	Export interval for the metrics, in milliseconds.	30000
protocol	The protocol that is used to send OpenTelemetry data. Possible values: `grpc`, `http/protobuf`.	`grpc`
ssl.ciphers	List of ciphers to enable, comma-separated. Empty for automatic cipher selection.
ssl.clientAuth	Whether the SSL client authentication is enabled and whether it is mandatory.
ssl.enabled	Defines if SSL is enabled.	`false`
ssl.keyStore.password	SSL keystore password.
ssl.keyStore.path	Path to the SSL keystore.
ssl.keyStore.type	Keystore type.	`PKCS12`
ssl.trustStore.password	Truststore password.
ssl.trustStore.path	Path to the truststore.
ssl.trustStore.type	Truststore type.	`PKCS12`

compression

How the payload is compressed. Possible values: none, gzip.

gzip

endpoint

The OpenTelemetry endpoint. Each node resolves the endpoint individually.

exporterName

Exporter name. Must be otlp to use OpenTelemetry.

headers

Request headers, if any.

name

User-defined exporter name, used to refer to it in GridGain.

period

Export interval for the metrics, in milliseconds.

30000

protocol

The protocol that is used to send OpenTelemetry data. Possible values: grpc, http/protobuf.

grpc

ssl.ciphers

List of ciphers to enable, comma-separated. Empty for automatic cipher selection.

ssl.clientAuth

Whether the SSL client authentication is enabled and whether it is mandatory.

ssl.enabled

Defines if SSL is enabled.

false

ssl.keyStore.password

SSL keystore password.

ssl.keyStore.path

Path to the SSL keystore.

ssl.keyStore.type

Keystore type.

PKCS12

ssl.trustStore.password

Truststore password.

ssl.trustStore.path

Path to the truststore.

ssl.trustStore.type

Truststore type.

PKCS12

Connection to Grafana

When connecting to Grafana Cloud, you need to use the protobuf protocol and pass the authorization header in the configuration:

cluster config update ignite.metrics.exporters.test: {exporterName:otlp, endpoint:"https://otlp-gateway-prod-eu-west-2.grafana.net/otlp", protocol:"http/protobuf", headers {Authorization.header="Basic myBasicAuthKey"}}

Connection to Prometheus

When connecting to Prometheus, you need to use the protobuf protocol and send metrics to the /api/v1/otlp/v1/metrics after the otlp metrics receiver is enabled as described in Prometheus documentation:

cluster config update ignite.metrics.exporters.test: {exporterName:otlp, endpoint:"http://localhost:9090/api/v1/otlp/v1/metrics", protocol:"http/protobuf"}
