Overview
Clustering (Node Discovery)

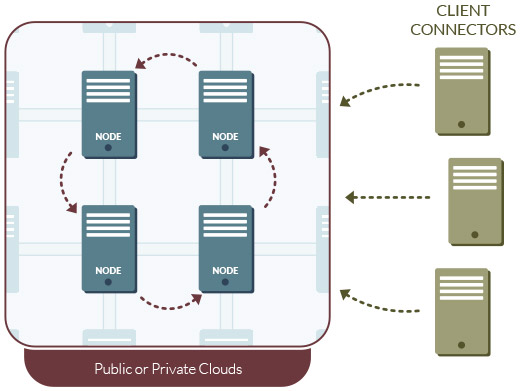

To form a cluster, nodes can discover each other in a number of ways.
On start-up, a node is assigned either one of the two roles: server node or client node. Server nodes are the workhorses of the cluster; they cache data, execute compute tasks, etc. Client nodes join the topology as regular nodes but they do not store data. Client nodes are used to stream data into the cluster and execute user queries.
To form a cluster, each node must be able to connect to all other nodes. To ensure that, a proper discovery mechanism must be configured.
In addition to client nodes, you can use Thin Clients to define and manipulate data in the cluster. GridGain provides thin clients for a variety of languages, such as java, .NET, C++, Node.JS, python, and PHP. Unlike regular client nodes, thin clients do not join the cluster topology (i.e. do not start a node); instead, they simply establish a socket connection to one of the cluster nodes and perform all operations via the binary protocol.
GridGain nodes can automatically discover each other and form a cluster. This allows you to scale out when needed without having to restart the whole cluster. Developers can also leverage GridGain’s hybrid cloud support that allows establishing connection between private and public clouds such as Amazon Web Services, providing them with the best of both worlds.
GridGain provides two implementations of the discovery mechanism intended for different usage scenarios:
-
TCP/IP Discovery is designed and optimized for 100s of nodes.
-
ZooKeeper Discovery that allows scaling GridGain clusters to 100s and 1000s of nodes preserving linear scalability and performance.
Cluster Activation
To run workloads on a cluster formed by the node discovery process, you need to activate that cluster. Activation:
-
Determines the effective baseline topology (excludes the offline nodes)
-
Unlocks APIs to interact with the data that resides on the baseline nodes while discarding the data assigned to those nodes not included in the baseline topology
New Clusters
Activation for new in-memory clusters (with no persistence) is performed automatically.
Activation for new clusters with persistent regions is manual. You need to activate the cluster when it reaches its target topology, which, upon activation, becomes the custer’s baseline topology.
Following are the options for first-time activation of persistent clusters.
Manual
Because this operation is performed once, it’s often convenient to activate a cluster manually. After making sure that all nodes have started and joined the cluster, an administrator can:
-
Run a set-state control.sh command, or
-
Initiate activation via the Control Center GUI.
Automated with a Deployment or Orchestration Tool
If a cluster is started with an automation tool such as Ansible, you can program the set-state control.sh command into the workflow. The above command should be run after all the nodes have started and connected to each other. The deployment / activation tool knows when all nodes have started, so it is in a position to rin the command at the right time.
Automated by an Application Running Embedded GridGain Nodes
A common way to run GridGain is to have GridGain nodes embedded into application processes, such as Spring Boot applications. In such cases, you may want to automate activation in the applications themselves. After an application starts and joins the rest of the cluster, the application checks the topology. If the topology is as expected (i.e., includes the correct number of nodes), the application triggers the activation via ignite.cluster().state(ACTIVE).
One way to check when a node has joined the cluster is via LifecycleBean`. This approach requires extra care because an incorrect implementation may lead to disastrous results. Each node makes a decision to activate separately. Therefore, if the status verification logic is flawed, the cluster will be activated at a wrong time, causing issues. It is recommended to activate with a centralized orchestrator or manually whenever possible.
Existing Clusters
If a persistent cluster is restarted, it will auto-activate upon reaching its baseline topology. Avoid manual activation of existing clusters. Manual activation may lead to the different nodes activating separately from the cluster. This will prevent these nodes from re-joining the cluster and/or cause permanent data loss.
