Command Line Tool
To allow a user to control the process of building a TensorFlow cluster on top of an Apache Ignite cluster, Ignite provides a simple command line tool with the following commands.
Start Command
The start command starts a new TensorFlow cluster on top of an Apache Ignite cluster for the specified cache and then starts training (specified by JOB_DIR, JOB_CMD, and JOB_ARGS). When everything is started, Apache Ignite maintains all processes and automatically restarts them in case of any failure. The output of the start command is an output of training.
Usage: ignite-tf start [-hV] [-c=<cfg>] CACHE_NAME JOB_DIR JOB_CMD [JOB_ARGS…]
Starts a new TensorFlow cluster and attaches to user script process.
CACHE_NAME: Upstream cache name.
JOB_DIR: Job folder (or zip archive).
JOB_CMD: Job command.
[JOB_ARGS…]: Job arguments.
-c, --config=<cfg>: Apache Ignite client configuration.
-h, --help: Show this help message and exit.
-V, --version: Print version information and exit.
Internally it means the following procedure:
-
Determine the placement of partitions for the specified cache.
-
According to the partitions placement, start workers on the appropriate nodes.
-
Start training code on a random node in the cluster with
TF_CONFIGthat contains information about workers placement. -
Route output of training to output of
startcommand. -
In case of failure, stop everything and start again from the first step.
-
If training is successfully completed, stop everything.
Stop Command
The stop command stops the specified TensorFlow cluster and corresponding training.
Usage: ignite-tf stop [-hV] [-c=<cfg>] CLUSTER_ID
Stops a running TensorFlow cluster.
CLUSTER_ID: Cluster identifier.
-c, --config=<cfg>: Apache Ignite client configuration.
-h, --help: Show this help message and exit.
-V, --version: Print version information and exit.
Attach Command
The attach command attaches to the specified training and routes output of this training to the output of the attach command.
Usage: ignite-tf attach [-hV] [-c=<cfg>] CLUSTER_ID
Attaches to running TensorFlow cluster (user script process).
CLUSTER_ID: Cluster identifier.
-c, --config=<cfg>: Apache Ignite client configuration.
-h, --help: Show this help message and exit.
-V, --version: Print version information and exit.
Ps Command
The ps command prints identifiers of all running TensorFlow clusters.
Usage: ignite-tf ps [-hV] [-c=<cfg>]
Prints identifiers of all running TensorFlow clusters.
-c, --config=<cfg>: Apache Ignite client configuration.
-h, --help: Show this help message and exit.
-V, --version: Print version information and exit.
Cluster Manager

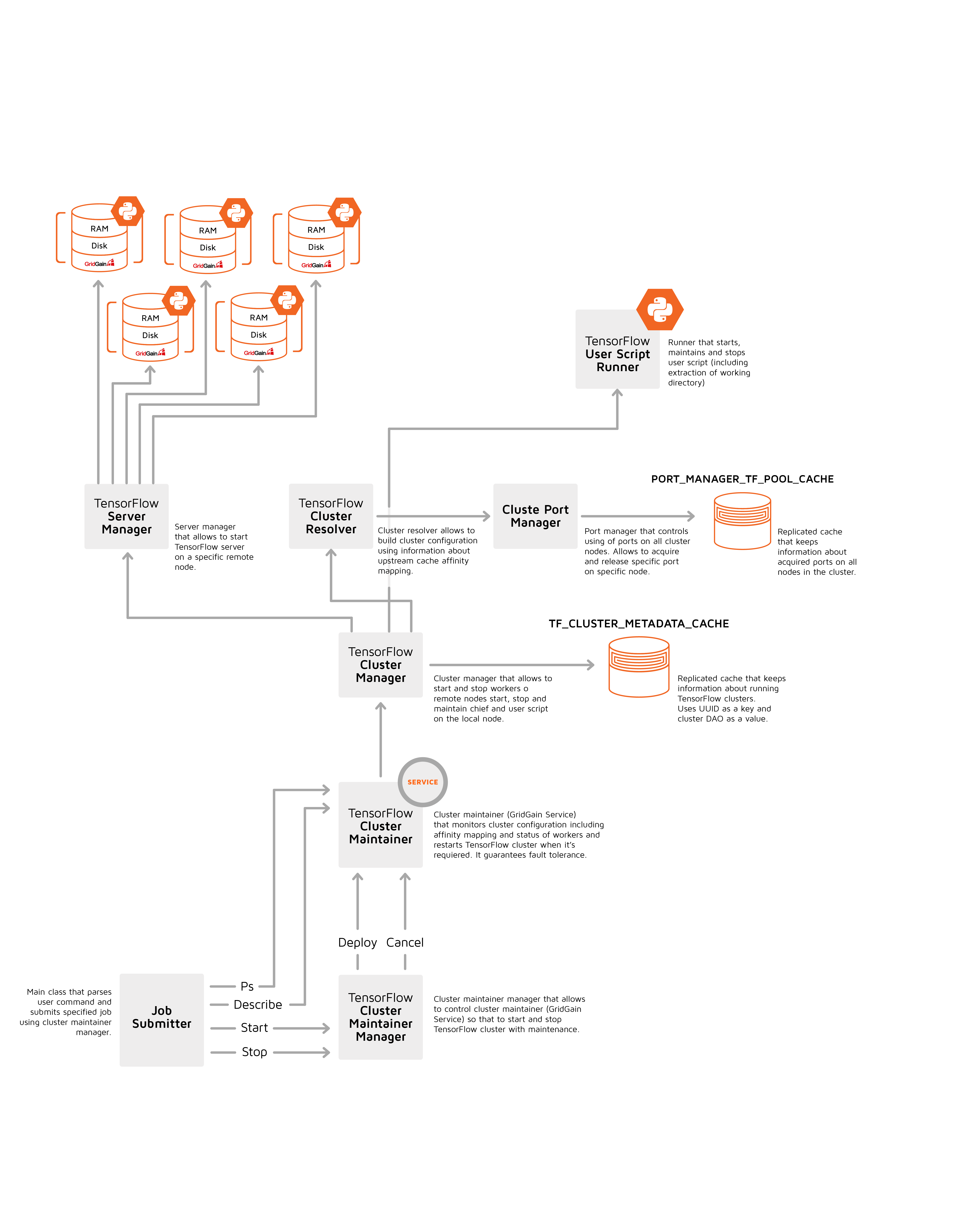

Apache Ignite has a complex infrastructure that maintains a TensorFlow cluster. A quick overview of this is shown in the following diagram:
